Rental LED Display

Rental LED Display

Product Features

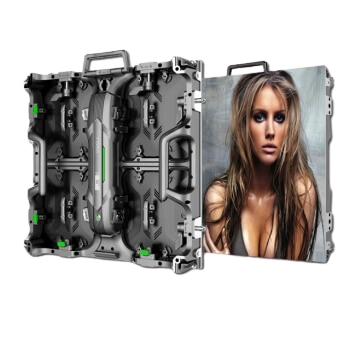

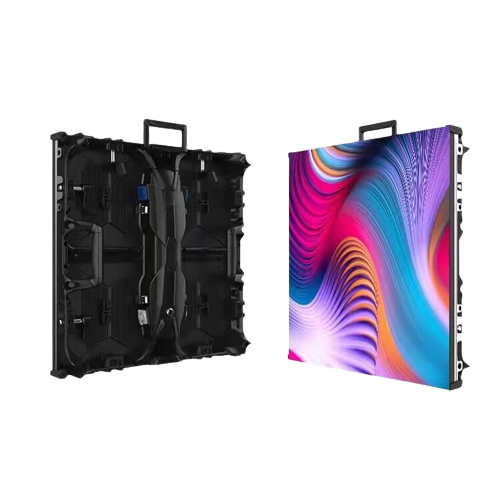

New Innovation rental LED Display:

VStar LED has developed rental LED Display. It is quick to install, thin and durable.With high resolution LED Video Screen rentals for all sorts of events,nightclubs,weddings,concert,church etc.

Unique Monitoring Module:

Unique rental led display cabinet with intelligent monitoring (LCD display) shows the working status, smart monitoring the signal and record the span life.

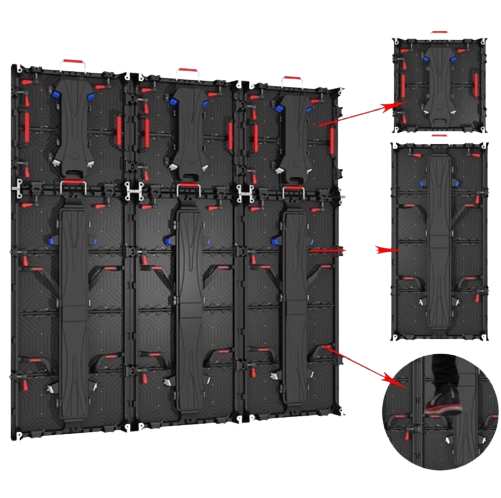

Curved Adaptability

It’s integrated curving panels can make convex and concave curvability

Indoor & Outdoor Reliability

High resolution is available for the most demanding environments.





  • Tool-less &easy to assemble and disassemble
  • Different kinds of pixel pitch option with indoor and outdoor
  • Adopting the die-cast aluminum cabinet design with light-weight and saving much labor cost.
  • VSTAR LED rental display series supports both front and rear maintenance (both module and power supply), saving time and space for users.

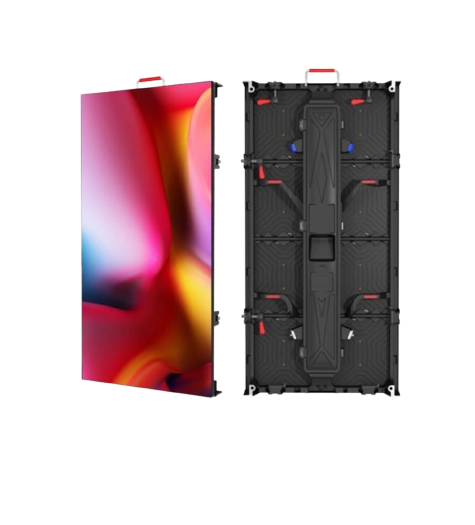

  • Two creative applications, interconnecting heights available – 500 and 1,000mm.





ITEM P2.604 P2.84 P2.976 P 3.91 P4.81 P5.95
Pixel Pitch 2.604mm 2.84mm 2.976mm 3.91mm 4.81mm 5.95mm
Pixel Configuration SMD1515 SMD2121 SMD2121 SMD2121 SMD2121 SMD3528
Pixel Density(dot/m2) 147456 123904 112896 65536 43264 28224
Module Resolution(W×H) 96×96 88×88 84×84 64×64 52×52 42×42
Module size(mm) 250X250 250X250 250X250 250X250 250X250 250X250
Module quantity(W×H) 2×2|2×4 2×2|2×4 2×2|2×4 2×2|2×4 2×2|2×4 2×2|2×4
Cabinet resolution(W×H) 192×192|192×384 176×176|176×352 168×168|168×336 128×128|128×256 104×104|104×208 84×84|84×168
Cabinet size(mm) 500(W)X500(H)| 500(W)X1000(H) 500(W)X500(H)| 500(W)X1000(H) 500(W)X500(H)| 500(W)X1000(H) 500(W)X500(H)| 500(W)X1000(H) 500(W)X500(H) | 500(W)X1000(H) 500(W)X500(H)| 500(W)X1000(H)
Cabinet weight(kg) 7.5|13 7.5|13 7.5|13 7.5|13 7.5|13 7.5|13
Cabinet material Die-casting aluminum Die-casting aluminum Die-casting aluminum Die-casting aluminum Die-casting aluminum Die-casting aluminum
Viewing Angle(H/V°) H:±140°/V:±120° H:±140°/V:±120° H:±140°/V:±120° H:±140°/V:±120° H:±140°/V:±120° H:±140°/V:±120°
Module Maintenance Front Front/Back Front/Back Front/Back Front/Back Front/Back
Color Temperature 3,200-9,300 Adjustable 3,200-9,300 Adjustable 3,200-9,300 Adjustable 3,200-9,300 Adjustable 3,200-9,300 Adjustable 3,200-9,300 Adjustable
Brightness(nits) 800 800 800 1000/4000 1000/4000 1000 /5000
Power Consumption Max(W/m2) 800 800 800 800 800 800
Power Consumption Avg(W/m2) 150-250 150-250 150-250 150-250 150-250 150-250
Operating Power Source AC100~240V,47-63(Hz) AC100~240V,47-63(Hz) AC100~240V,47-63(Hz) AC100~240V,47-63(Hz) AC100~240V,47-63(Hz) AC100~240V,47-63(Hz)
Gray Scale 16bits 16bits 16bits 14bits 14bits 14bits
Refresh Rate(Hz) 1920/3840 1920/3840 1920/3840 1920/3840 ≥1920 ≥1920
Video Effect 2KHD,4KHD 2KHD,4KHD 2KHD,4KHD 2KHD,4KHD 2KHD,4KHD 2KHD,4KHD
Ingress Protection(IP) 54 54 54 65 65 65
Viewing Distance(m) 3-50 3-100 3-100 4-150 5-150 5-150
Certificate CCC,TUV-CE CCC,TUV-CE CCC,TUV-CE CCC,TUV-CE CCC,TUV-CE CCC,TUV-CE

Rental Display

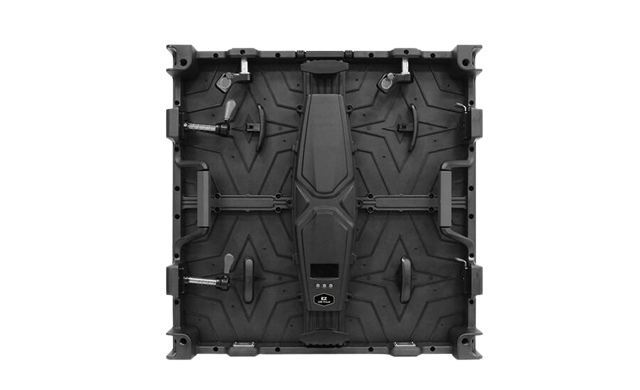

Unique Monitoring Module

Intelligent cabinet with intelligent monitoring

shows the working status, smart monitoring the signal and record the span life.

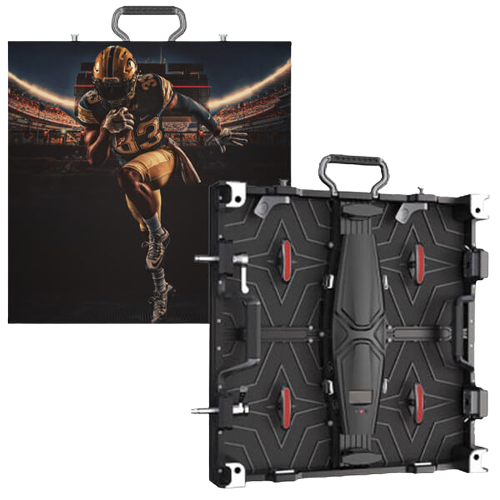

Perfect Design of Maintenance:

VSTAR LED rental display series supports both front and rear maintenance (both module and power supply), saving time and space for users.

The cabinet is multi-waterproof design

                  Protection grade IP65,mature signal transmission, safer and more reliable.

Protection Design

                  To protect both the module and user from accidental damage.
