LED Video Floor

LED Video Floor

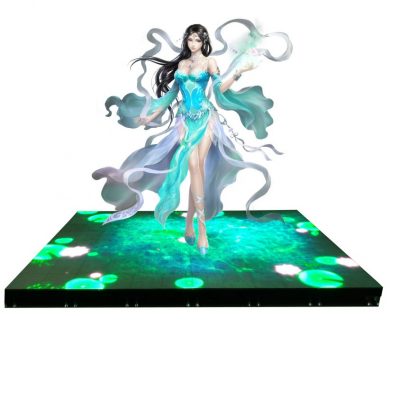

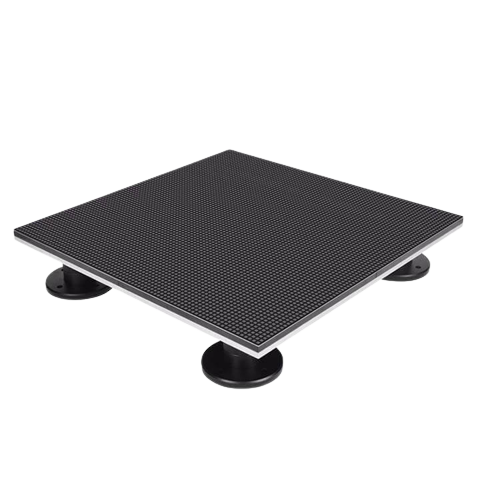

VSTAR LED video floor is a kind of full-color interactive led video floor, with the strength of lightweight, flexible, easy installation and maintenance. The cabinet size is 500x1000mm, 12.5kg/panel, the available pixel pitch is P6.25 and P8.92 It is a good choice for different events, such as stage, concerts, show, nightclub, shopping mall, etc.

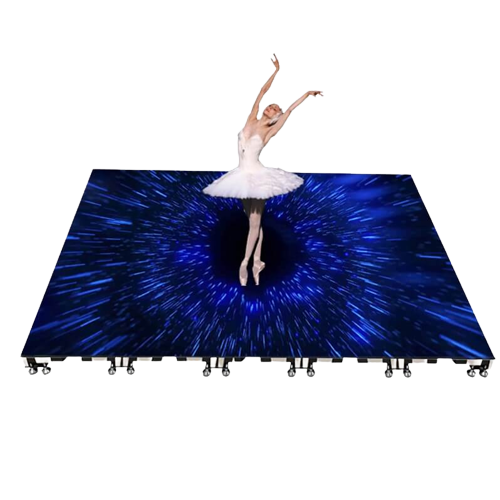

LED Dance Floor control system can display video animation, image text information, and other characteristics. With interactive function, achieve the human being and machine interactive. High quality LED Dance Floor supplied by experienced manufacturers at Global Sources.

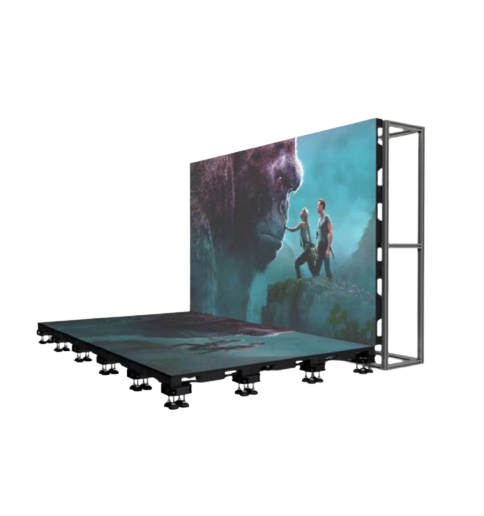

It’s can be used as led dance floor, also can hang up as a led video wall, tool-free to install &dismount.





  • Nationstar LED lamp gold wire package and A grade raw material plastic package.
  • High-end LED floor special waterproof silica gel.
  • PCB adopts exclusive line design.
  • Super wide viewing angle increasing its value by covering more audience.
  • Adjustable bottom support, According to project situation, adjust the high level.

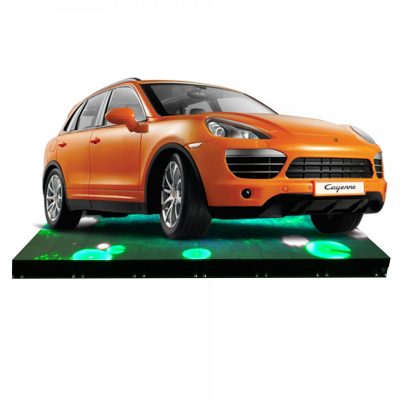

  • The PC cover is made of anti-slip and the bearing weight is above 2T.

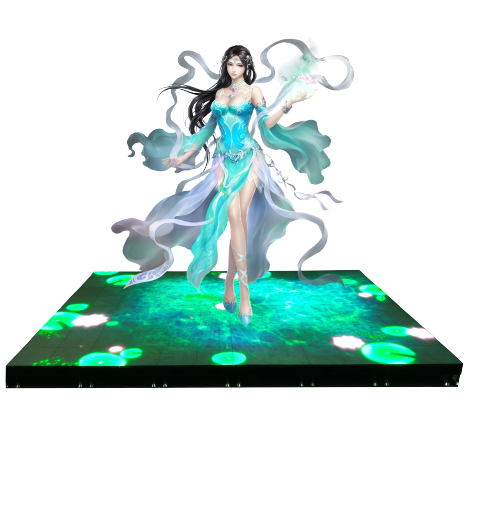

  • Realization of human-computer interaction experience.



Technical Specifications FLR-6.25 FLR-8.92
Pixel Pitch(H/V) 6.25mm 8.92mm
LED Configuration SMD2727 SMD3535
Pixel Density 25600dot/m² 12544dot/m²
Brightness 4000-5500CD/m² 4000~5500CD/m²
Module size 250×250mm 250×250mm
Module Resolution 40x40dot 28x28dot
Cabinet Size 500*1000*75mmm 500*1000*75mm
Cabinet Resolution 80x160dot 56X112dot/td>
Cabinet Weight 12.5kg/PCS 12.5kg/PCS
IP Rating IP65/IP43 IP65/IP43
Viewing Angle(H/V) 120°(H)/120°(V) 120°(H)/120°(V)
Gray Scale 14bit 14bit
Max.Power Consumption 600W/m²  600W/m²
Ave.Power Consumption 300W/m²  300W/m²
Refresh Rate 1920Hz  1920Hz
Environment Indoor/Outdoor Indoor/Outdoor
Control Mode Synchronous display with control PC by DVI  Synchronous display with control PC by DVI
Support Input Composite,S-Vido, Component, VGA,DVI,HDMI,HD_SDI  Composite,S-Vido, Component, VGA,DVI,HDMI,HD_SDI
Operation Power AC100~240,50/60Hz  AC100~240,50/60Hz
Operating Temperature 0℃~+40℃(work),
– 20℃~+60℃(store)
 0℃~+40℃(work),
– 20℃~+60℃(store)
Operating Humidity 35%~85%(work),10~90%(store)  35%~85%(work),10~90%(store)
Operating Life 100,000 hours 100,000 hours
Certificate CE,RoHS CE,RoHS

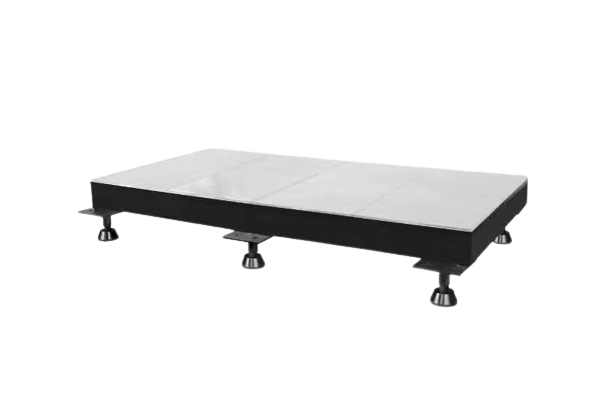

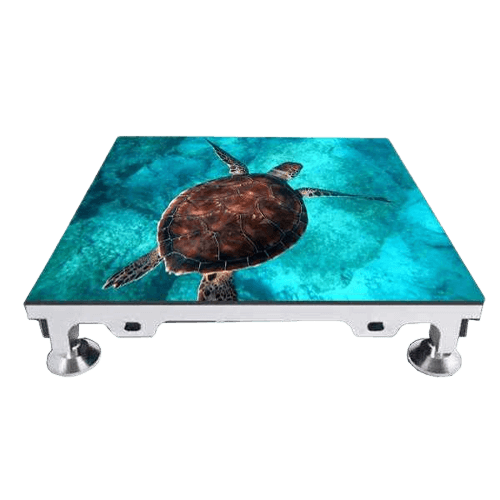

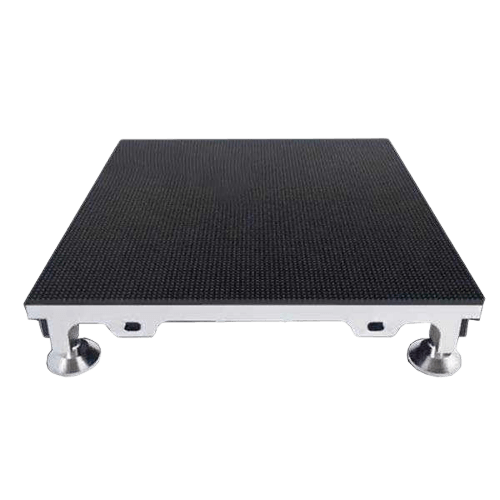

Detail of Cabinet

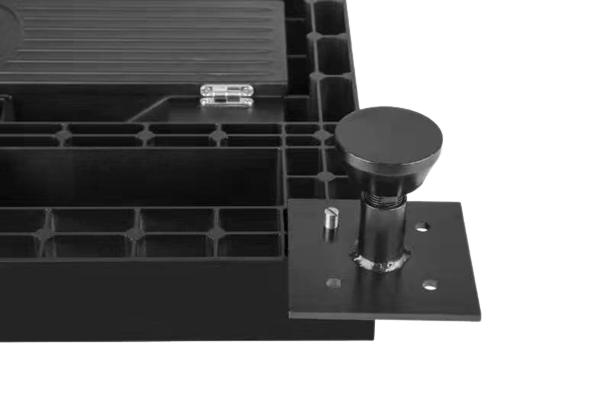

Detail of Installation:

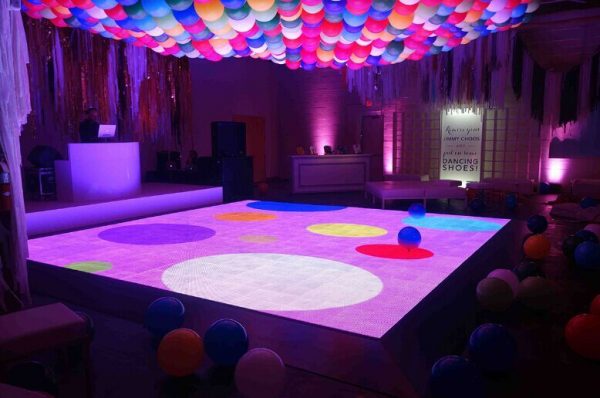

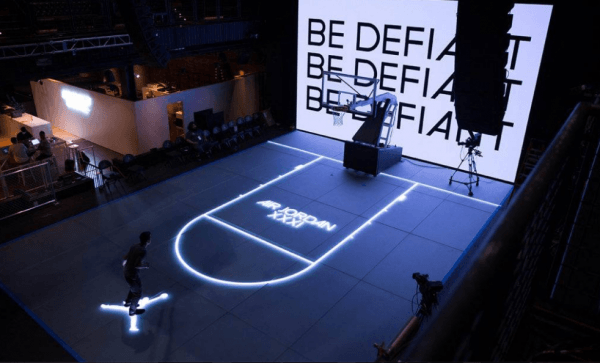

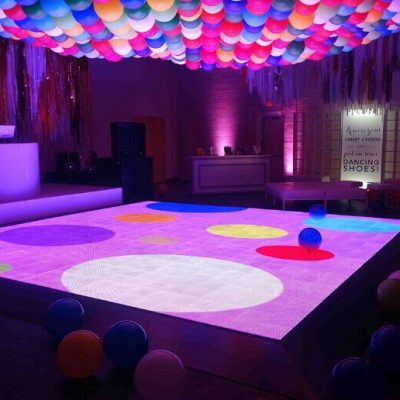

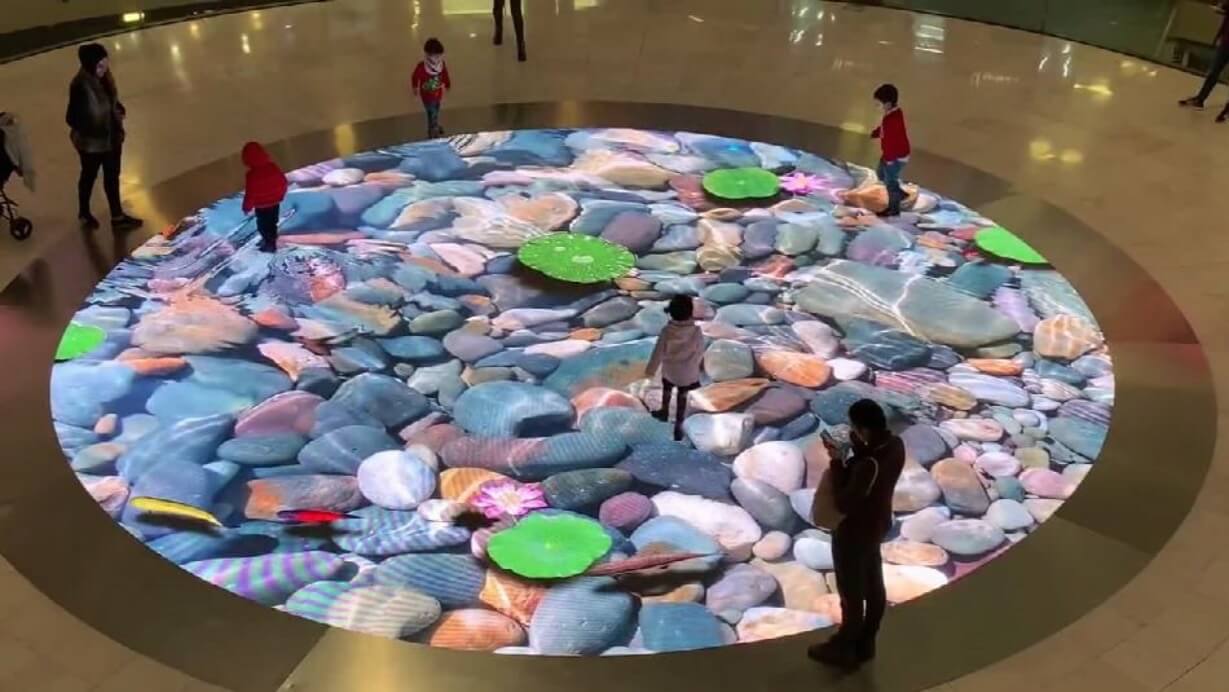

Project Cases:
